Pressures gauges

SKF pressure gauges are designed to fit SKF hydraulic pumps and oil injectors. The gauges are all liquid filled and/or equipped with a restriction screw in order to absorb any sudden pressure drop thereby preventing damage. Safety glass and blowout discs are standard for all gauges and all have dual scales (MPa/psi)..

Covers pressures of 100 to 400 MPa (14 500 to 58 000 psi)

Protection against sudden pressure drops

Safety glass and blow out discs on all gauges

Stainless steel case

Dual scales MPa/psi

Easy to ready, high visibility yellow gauge faces

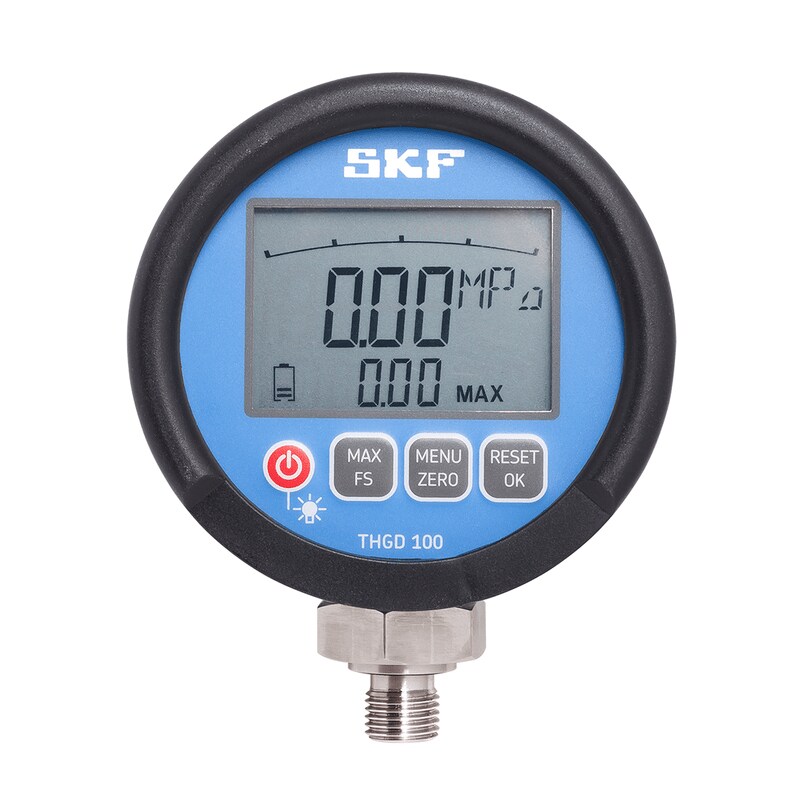

The Digital oil pressure gauge, THGD 100, is used to accurately measure the hydraulic pressure when mounting bearings using the SKF Drive-up Method.

The gauge is also suitable for other applications where the pressure has to be determined with high accuracy, up to pressures of 100 MPa (15 000 psi).

Large LCD display with digital and bar graph indication

With a high ingress protection level of IP 67, it can be used in most industrial environments

User selectable auto-off function helps safe battery life

Back lit display for use in dark environments

Technical data (metric)

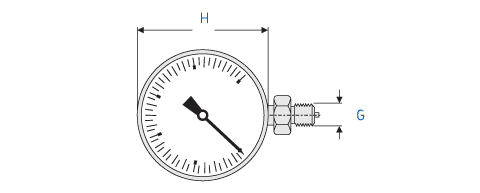

Designation	Pressure range	Diameter H	Connection thread	Weight	Accuracy
–	MPa	mm	G	kg	% of full scale
1077587	0-100	110	G1/2	1	1
1077587/2	0-100	69	G1/4	0,25	1,6
THGD 100 *	0-100	79	G1/4	0.54	± 0,1
1077589	0-300	110	G1/2	1	1
1077589/3	0-400	110	G1/2	1	1
* Digital pressure gauge

Technical data (imperial)
Designation	Pressure range	Diameter H	Connection thread	Weight	Accuracy
–	psi	in	G	lb	% of full scale
1077587	0-14 500	4.33	G1/2	2.2	1
1077587/2	0-14 500	2.72	G1/4	0.6	1,6
THGD 100 *	0-15 000	3.10	G1/4	1.2	± 0,1
1077589	0-43 500	4.33	G1/2	2.2	1
1077589/3	0-58 000	4.33	G1/2	2.2	1
* Digital pressure gauge

Spare parts
Designation	Description
TMJG S100	Pressure gauge protection sleeve 100 mm (for 1077587, 1077589, 1077589/3)
