Hydraulic pumps and oil injectors
| Hydraulic pump and oil injector selection guide |
||||
| Max. working pressure |
Pump |
Type |
Oil container capacity |
Connection nipple |
| 30 MPa (4 350 psi) |
THAP 030E |
Air-driven pump |
Separate container |
G3/4 |
| 50 MPa (7 250 psi) |
TMJL 50 |
Hand operated pump |
2 700 cm³ (165 in³) |
G1/4 |
| 100 MPa (14 500 psi) |
729124 |
Hand operated pump |
250 cm³ (15 in³) |
G1/4 |
| TMJL 100 |
Hand operated pump |
800 cm³ (48 in³) |
G1/4 |
|
| 150 MPa (21 750 psi) |
THAP 150E |
Air-driven pump |
Separate container |
G3/4 |
| 728619 E |
Hand operated pump |
2 550 cm³ (155 in³) |
G1/4 |
|
| 300 MPa (43 500 psi) |
THAP 300E |
Air-driven oil injector |
Separate container |
G3/4 |
| 226400 E |
Hand operated oil injector |
200 cm³ (12.2 in³) |
G3/4 |
|
| 729101/300MPA |
Oil injection kit |
200 cm³ (12.2 in³) |
Several |
|
| THKI 300 | Oil injection set | 200 cm³ (12.2 in³) |
Several | |
| 400 MPa (58 000 psi) |
THAP 400E |
Air-driven oil injector |
Separate container |
G3/4 |
| 226400 E/ 400 |
Hand operated oil injector |
200 cm³ (12.2 in³) |
G3/4 |
|
| 729101/400MPA |
Oil injection kit |
200 cm³ (12.2 in³) |
Several |
|
| THKI 400 | Oil injection set |
200 cm³ (12.2 in³) |
Several | |
| * The interference fit and application size may mean that a pump / injector with a higher pressure and/or container volume is required. |
||||
Hydraulic pumps and oil injectors
Hydraulic pump TMJL 50
50 MPa – (7 250 psi)

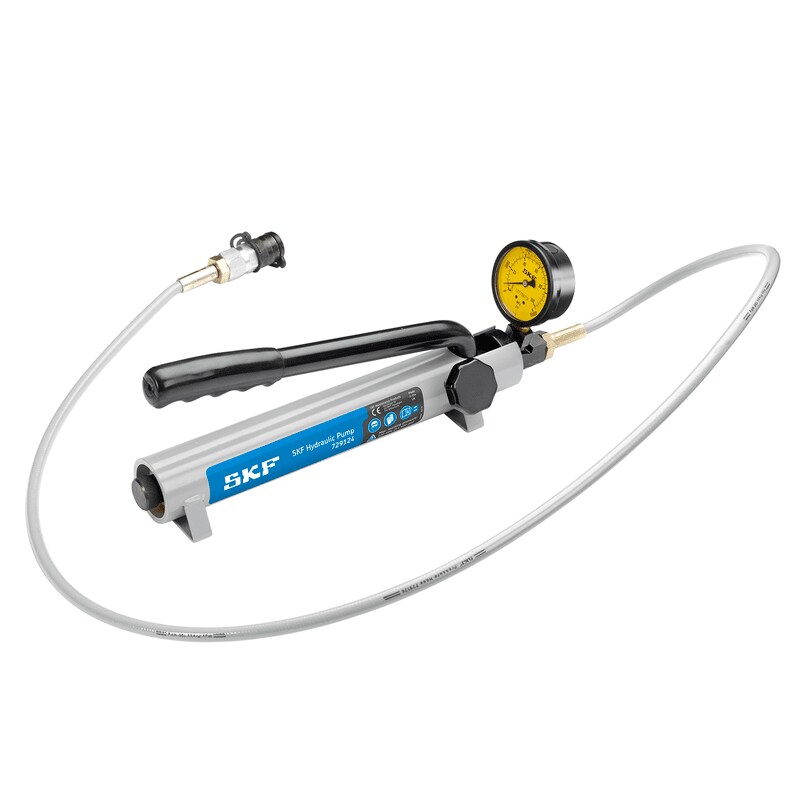

Hydraulic pump 729124
100 MPa – (14 500 psi)

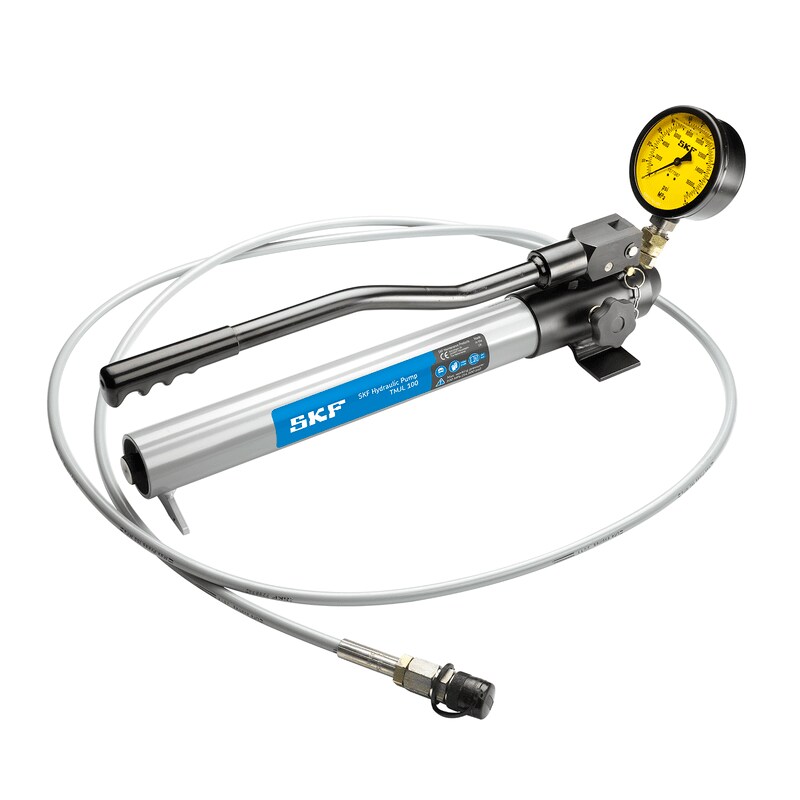

Hydraulic pump TMJL 100
100 MPa – (14 500 psi) with large oil container
Hydraulic pump 728619 E
150 MPa – (21 750 psi)
Oil injectors 226400 E
300 and 400 MPa (43 500 and 58 000 psi)
Oil injection kits 729101
300 and 400 MPa (43 500 and 58 000 psi)
Oil injection sets THKI series
300 and 400 MPa (43 500 and 58 000 psi)
Air-driven hydraulic pumps and injectors
30 to 400 MPa (4 350 to 58 000 psi)
