Adjustable chocks
SKF Vibracon – The universal adjustable re-useable chock
SKF Vibracon is a machinery mounting chock that is easily and accurately adjusted. The chock accommodates the angular difference, up to 4°, between machine and the mounting base without expensive machining of the base or the extra work of installing epoxy resin chocks. The self-levelling capability, combined with the height adjustment feature, eliminates the possibility of a soft foot in the production line throughout the life cycle of the machinery.
Saves installation time
Re-adjustable / re-useable
Accommodates angular gaps
Self levelling
Eliminates the ‘Soft Foot’
Installed base of over 1 300 000 pieces
Standard range available from stock
Customized engineered solutions
The SKF Vibracon is available in different materials to meet the need of your application, even those in the harshest environments. This adjustable chock is available in standard carbon steel (CS series) and in surface-treated carbon steel (CSTR series) for improved corrosion protection. Developed to withstand the most challenging conditions, a stainless steel version (SS series) is offered with the highest corrosion protection available. SKF Vibracon low profile (ASTR series) configuration addresses those applications where the chock height between the foundation and component has been established by the previous design.
Applications and industries
The origin of the SKF Vibracon chock products can be found in a marine environment. However, the product is applied in many more industries. When components are pre-mounted on a steel base frame, a so called skid, the necessity for initial and final alignment is apparent. Also for concrete mounted components. The Vibracon does have an impressive track record.
The SKF Vibracon products are known within the following industries and applications:
| Applications | Industries |
|
Engines Gearboxes PTO shaft generators Shaft bearings Generator sets Compressors Electric motors Pump sets Steam and gas turbines Diesel power plants Industrial fans Industrial pumps Industrial transmissions Machine tools |
Marine / Navy Material handling Medical and health care Metals Mining, mineral processing and cement Oil and gas / Offshore Pulp and paper Railways Solar energy Traditional power Wind energy |
SKF Vibracon product range
CS series – Carbon steel
SKF Vibracon carbon steel universal adjustable chock
CSTR series – Surface treated carbon steel
SKF Vibracon surface treated carbon steel universal adjustable chock
SS series – Stainless steel
SKF Vibracon stainless steel universal adjustable chock
ASTR series – Surface treated alloy steel low profile
SKF Vibracon low profile universal adjustable chock

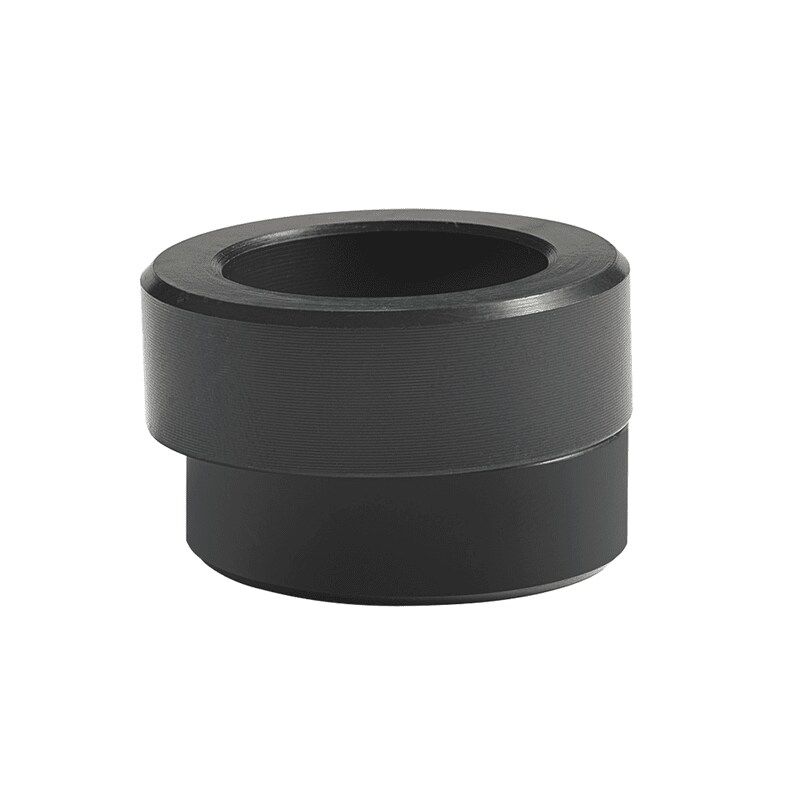

Spherical washers
Straight bolt tensioning for longer endurance

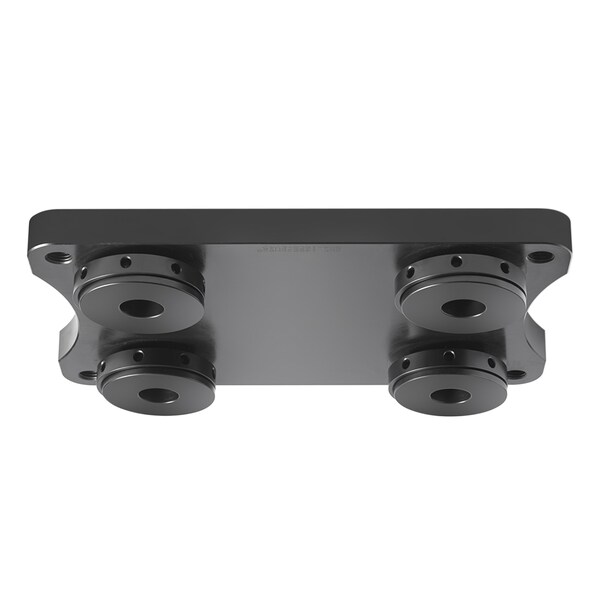

Kits for resilient mounts
For clean and permanent alignment and chocking of resilient mounted equipment

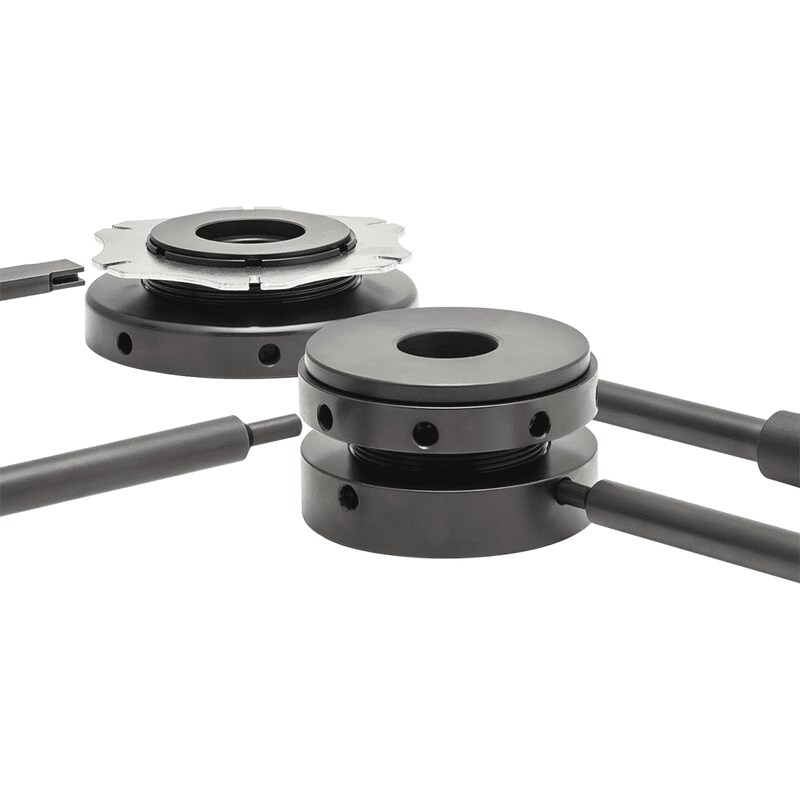

Adjustment tool
For safe height alteration of the SKF Vibracon chocks with comfort
Custom chocks
Many SKF Vibracon options are available to solve mounting challenges.
