Multi point automatic lubricators

Multi point automatic lubricators

Reliable relubrication of multiple lubrication points

Multi point automatic lubricator TLMP series

The SKF Multi point automatic lubricator TLMP series is intended for reliable relubrication of multiple lubrication points. This sturdy automatic lubrication system is packaged as a complete kit, including the lubricator, required tubing and connectors. Designed to supply from one to eighteen lubrication points, the TLMP series features pluggable outlets and is easy to install and program via its keypad with LED display.

TLMP series advantages

Easy to install and program

Complete kit

Suitable for one to eighteen lubrication points

Low-level and malfunction alarms; remote notification possible

Machine steering by removing power

Available in versions with different voltages

Developed for industrial applications, as well as agricultural and off-road vehicles

TLMP series product video

Product details

Featuring a reservoir capacity of nearly one litre, this versatile lubricator has a stirring paddle to prevent grease separation, making it suitable for more lubricants. With its high IP protection rating, the durable TLMP series is vibration resistant, withstands equipment washdowns and prevents contamination ingress. Also, the unit enables machine steering to temporarily disable lubrication by removing power.

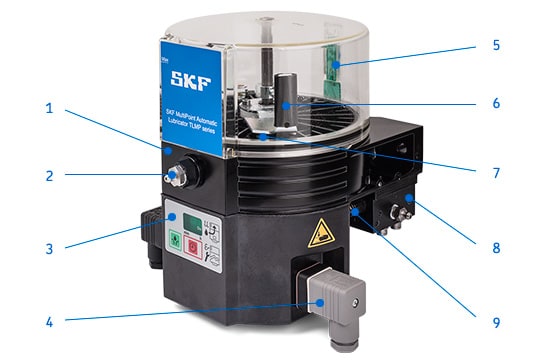

Multi point lubricator TLMP series features

Durable, metal housing for long service life

Grease nipple

LED display for simple programming

Alarm indicates when reservoir is empty or when outlet is blocked

Filter to avoid grease contamination from airborne particles

Stirring paddle to prevent grease separation

Pump element features maximum operating pressure of 120 bar (1 740 psi)

Divider block provides flexibility of using one to eight outlets

Cycle control sensor ensures lubricant is delivered to outlets

Contents

The TLMP series are supplied complete with the following items
TLMP 1008 TLMP 1018
1 × 1 × Pump
1 × 1 × Fitting material for the pump unit
2 × 2 × Electrical connectors
20 m (65 ft) 50 m (164 ft) plastic pipe Nylon, 6 x 1,5 mm
8 × 18 × Straight tube connectors for application G 1/8
8 × 18 × Tube connectors plugs
7 × 17 × Outlet closure plugs

Technical data

Technical data
Designation TLMP 1008 / TLMP 1018
Number of lubrication outlets

TLMP 1008

TLMP 1018
1–8

1–18
Suitable grease consistency NLGI 2, 3
Maximum pressure 120 bar (1 740 psi)
Maximum distance length to lubrication point 5 m (16 ft)
Dispense rate 0,1 – 40 cm3/day (0.003 -1.35 US fl. oz/day) per outlet
Output pump element Approx. 0,2 cm3 (per cycle), approx.

1,7 cm3 (per minute)
Reservoir size 1 litre
Useable reservoir volume Approx. 0,5–0,9 litres (17–30 US fl.oz)
Filling Via hydraulic lubrication fitting R1/4
Installation position Vertical (max deviation ±5°)
Power Supply Connector EN 175301-803  DIN 43650/A
Alarms blocked feed lines, empty reservoir

internal and external
External steering By disconnecting power supply
Ambient temperature –25 to +70 °C (–13 to +160 °F)
IP rating IP 67
Lubrication tubes

TLMP 1008

TLMP 1018
20 m (65 ft), 6 x 1,5 mm, Nylon

50 m (164 ft), 6 x 1,5 mm, Nylon
Weight Approx. 6 kg (13 lb)
Ordering details 8 outlets

TLMP 1008/24DC

TLMP 1008/120V

TLMP 1008/230V
24 V DC (–20/+30%)

120 V AC 60 Hz (±10%)

230 V AC 50 Hz (±10%)
Ordering details 18 outlets

TLMP 1018/24DC

TLMP 1018/120V

TLMP 1018/230V
24 V DC (–20/+30%)

120 V AC 60 Hz (±10%)

230 V AC 50 Hz (±10%)
