Ultrasonic leak detector

Ultrasonic leak detector

Quick and easy detection of air leaks

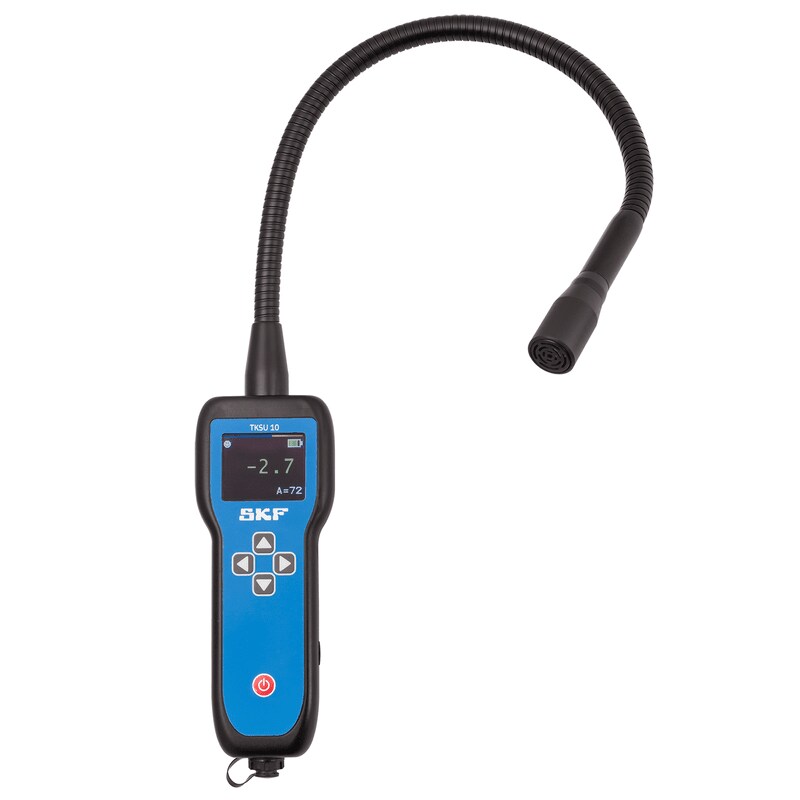

The SKF TKSU 10 is an ultrasonic leak detector that helps users to quickly find leakages in compressed air or vacuum systems. The instrument is very simple to use and features adjustable sensitivity and intuitive guidance for superior leak detection results.

Any compressed air system can experience leaks, which amplify the load on compressors and increase costs. The TKSU 10 helps users to easily find leaks from a distance, even in noisy industrial environments, via its ultrasound measurement sensor. The built-in LED display assists the user in adjusting sensitivity and shows the measured ultrasound noise from leaking air, allowing the quantification of leaks and prioritization of repairs.

Key features and customer benefits

Easy to use; no training required

Leak detection from a distance in noisy industrial environments

Color LED display assists in adjusting sensitivity settings and shows measurement values

Reduces energy and maintenance costs via leak identification and repair

Lightweight, handheld device with industrial headset included

Independently adjustable sensor sensitivity and headset volume

Flexible probe helps find leaks in difficult-to-access locations

Headset features neck-band design to wear with protective helmet

The TKSU 10 is designed for use in all industries utilizing compressed air, and it is particularly recommended for paper and chemical industries, as well as workshops with air-driven power tools.

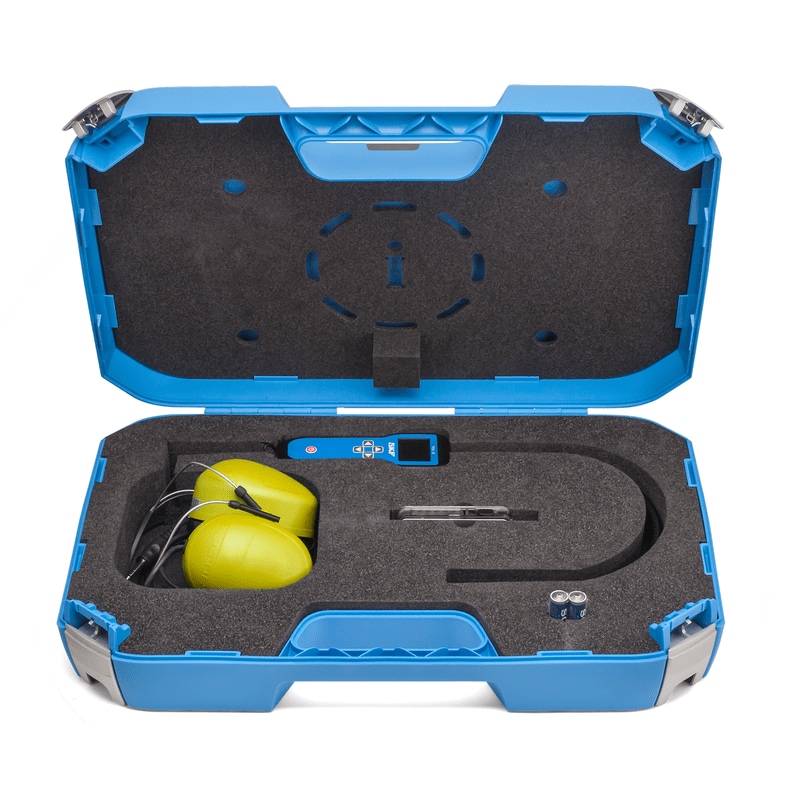

TKSU 10 components

Ultrasonic leak detector TKSU 1

Leak detector

Headset with neck-band

Flexible ultrasound probe

Batteries

USB cable

Mini multi-functional tool

SKF carrying case

TKSU 10 is simple to use

Ultrasonic leak detector TKSU 1

Put on headset

Turn on device

Adjust sensitivity as shown on the screen

Scan area and find leakage

Get closer to pinpoint leakage and adjust sensitivity as shown

Mark leak and note leakage details

Take corrective action

Technical data

Technical data
Designation TKSU 10
Description Ultrasound leak detector
Measurement channel 1 channel via a 7 pole LEMO connector
Display Color OLED
Keyboard 5 function keys
Measuring range -6 to 99,9 dBµV (reference 0 dB = 1 µV)
Resolution 0,1 dBµV
Measurement Bandwidth 35 to 42 kHz
Signal amplification +30 to +102 by step of 6 dB
Audio
Amplification 5 adjustable positions in steps of 6 dB
Maximum output +83 dB SPL with supplied headset
Headset 25 dB NRR Peltor HQ headset
Headset connector Stereo jack connector of 6,35 mm (1/4 in)
Power
Battery 2 AA batteries
Battery life 7 hours
Environmental
Operating temperature From –10 °C to +50 °C (14 °F to 122 °F)
IP rating IP42
Mechanical
Housing material ABS
Dimensions instrument 158 × 59 × 38,5 mm (6.22 × 2.32 × 1.51 in)
Flexible rod length 445 mm (17.51 in)
Weight instrument (incl. batteries) 350 g (0.78 lb)
Carrying case dimensions 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in)
Total weight (incl. case) 3 kg (6.6 lb)
