Grease meter
Accurate grease quantity measurement for adequate lubrication
That can negatively influence the bearing’s service life and possibly result in machine breakdown.

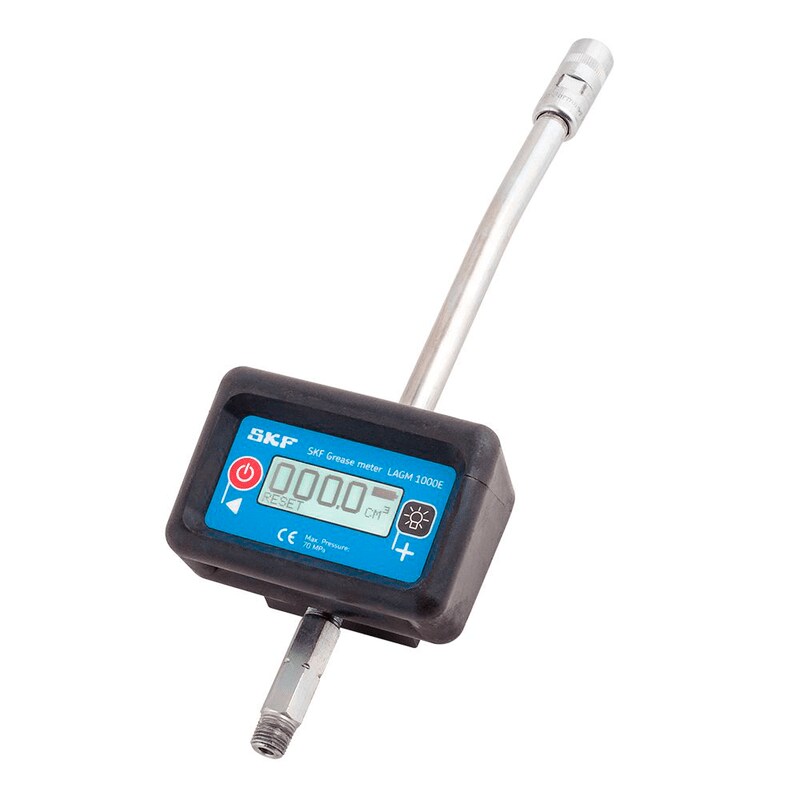

The SKF grease meter LAGM 1000E accurately measures grease discharge in volume or weight, in both metric (cm³ or g) and US units (US fl. oz or oz). It has a high maximum pressure of 700 bar (10 000 psi), making it ideal for use in combination with many types of grease guns and pumps.
Measures grease discharge in volume or weight, making conversion calculations unnecessary
High accuracy facilitates adequate bearing lubrication, reducing the risk of over- or under-greasing
Suitable for all SKF bearing greases of consistency classes up to NLGI 3
An oil and grease resistant rubber sleeve protects the electronics in case of impact
The backlit LCD displays large and clear-to-read digits, including “low battery” indication
Small, compact and lightweight design – only 0,3 kg (0.66 lb)
Corrosion-free aluminium housing
Easy to install and use
Fits with all SKF manual grease guns and air-operated grease pumps
Fixed installation in conjunction with a lubrication system possible
Technical data
| Technical data | |
| Designation | LAGM 1000E |
| Housing material |
Aluminium, anodised |
| Weight |
0,3 kg (0.66 lb) |
| Maximum grease flow |
1 000 cm³/min (34 US fl. oz/min) |
| IP rating |
IP 67 |
| Suitable greases |
NLGI 0 – NLGI 3 |
| Maximum operating pressure |
700 bar (10 000 psi) |
| Thread connections |
M10 x 1 |
| Display |
Lit LCD (4 digits / 9 mm) |
| Accuracy |
±3% from 0 – 300 bar |
| ±5% from 300 – 700 bar |
|
| Selectable units |
cm³, g, US fl. oz or oz |
| Display lamp auto switch off |
15 seconds after last pulse |
| Low battery |
Indication on display |
| Battery type |
1.5 V AA Alkaline |
| Unit auto switch off |
Programmable |
