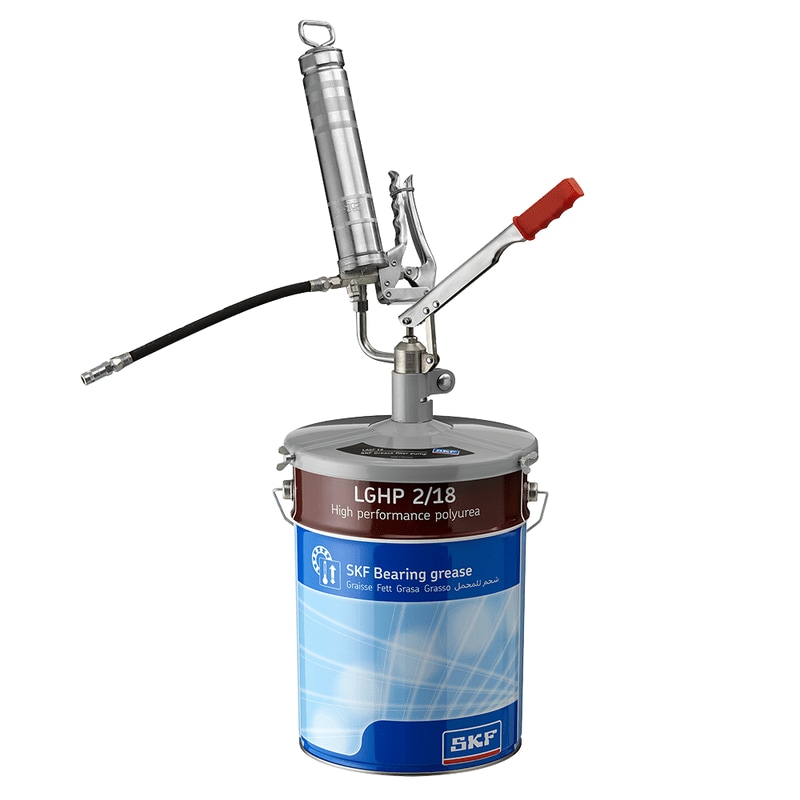

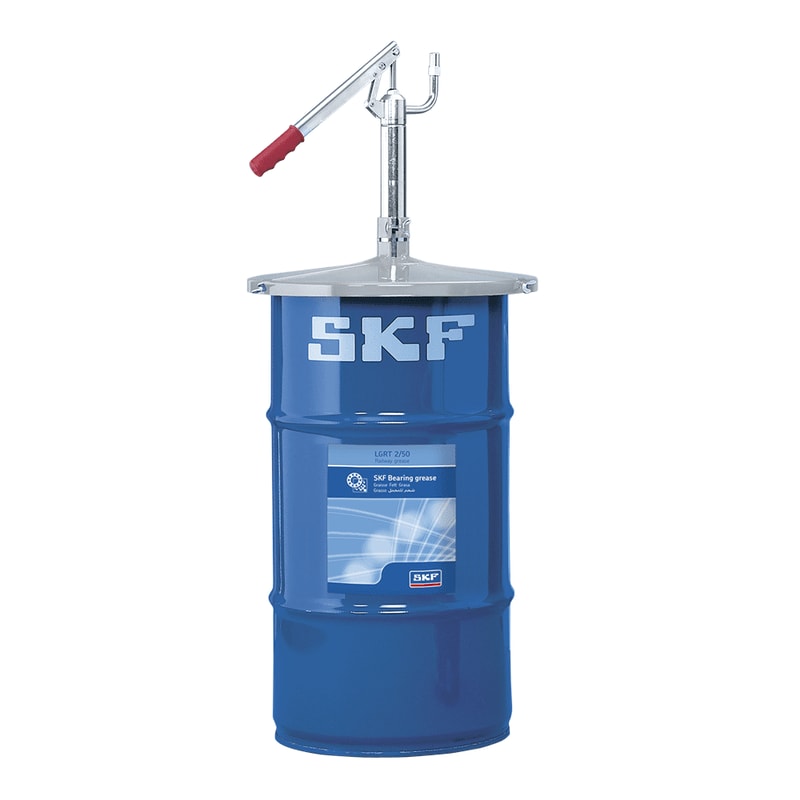

Grease filler pumps
Optimum cleanliness when filling your grease guns
Best lubrication practices say that each type of grease requires an individual grease gun and the refilling has to be a clean process. SKF Grease Filler Pumps are designed to help achieve this goal.
Quick filling: low pressure high stroke volume
Easy installation: all necessary items are included
Reliable: tested and approved for all SKF greases
Appropriate as a complement for SKF Bearing Packer VKN 550
LAGF series product video
Technical data
| Designation |
LAGF 18 |
LAGF 50 |
| Maximum pressure |
30 bar (430 psi) |
30 bar (430 psi) |
| Volume/stroke |
approx. 45 cm³ (1.5 US fl. oz) |
approx. 45 cm³ (1.5 US fl. oz) |
| Suitable drum dimensions |
||
| – inside diameter |
265-285 mm (10.4-11.2 in.) |
350-385 mm (13.8-15.2 in.) |
| – maximum inside height |
420 mm (16.5 in.) |
675 mm (26.6 in.) |
| Weight |
5 kg (11 lb) |
7 kg (15 lb) |
| Accessories | |
| Designation |
Description |
| LAGT 18-50 |
Trolley for 18 kg (40 lb) and 50 kg (110 lb) drums |
