Battery driven grease gun

Battery driven grease gun

Integrated grease meter delivers precise lubrication

Developed for maximum efficiency, the SKF Battery Driven Grease Gun TLGB 20 includes an integrated grease meter to help prevent over- and under-lubrication. This unique tool features a durable, ergonomic design with a three-point stand for operator comfort and convenience and a lithium-ion battery for longer life.

The tool’s display indicates battery charge level, amount of grease dispensed, pump/motor speed and blocked lubrication points. This versatile grease gun provides two flow rates – low and high – and can dispense up to 15 grease cartridges per battery charge. The TLGB 20 can deliver pressures up to 700 bar (10,000 psi) and features a built-in light to illuminate the work area.

TLGB 20 product video

Product features

Integrated grease meter tracks dispensed grease

Battery charge display indicates lithium battery charge level

Three-point stand keeps grease gun upright for easy handling

LED light illuminates work area to help locate grease fittings in dimly lit environments

Two-speed flow rate enables adjustment from low-volume to high-volume flow to suit the application

Lithium-ion battery dispenses up to 15 grease cartridges per charge and maintains stable energy output

Filler nipple facilitates clean and simple filling from drums using filler pumps

Vent valve removes trapped air inside grease gun for trouble-free priming

Spring guards preserve flex hose life by preventing kinks

Lightweight, ergonomic design with optimized balance for operator comfort

Supplied in sturdy carrying case with 900mm (36-inch) high-pressure hose, rechargeable 20-volt battery and 90-minute charger

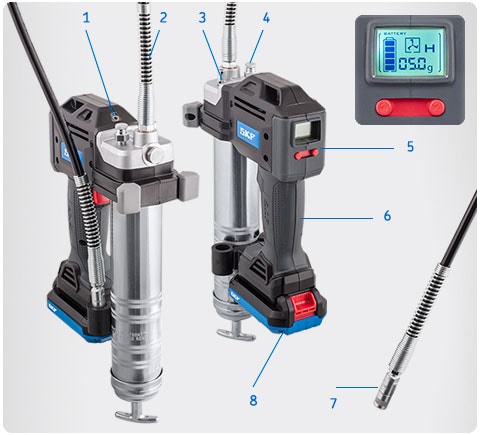

Battery driven grease gun TLGB 20

LED light

Spring guards

Filler nipple

Vent valve

Multi-function LCD

Ergonomic design

4-Jaw coupler

20V Lithium-ion battery

Related documents

Technical data

Technical data
Designation TLGB 20 and TLGB 20/110V
Display Grease meter

Battery capacity gauge

Alert of blocked fittings

Alert of loss of prime
Grease output
– Low speed setting 100 ml/min. (3.5 oz/min.) at 70 bar pressure
– High speed setting 160 ml/min. (5.5 oz/min.) at 70 bar pressure
Maximum operating pressure 400 bar (6 000 psi)
Maximum peak pressure 700 bar (10 000 psi)
Cartridges per battery charge 15 cartridges (free flow, low speed)

5 cartridges (200 bar counter pressure, low speed)
Length of hose 900 mm (36 in.)
Battery type Li-Ion
Battery output 20V DC maximum (without workload)
Battery capacity 1 500 mAh
Voltage charger, V/Hz
– TLGB 20 200–240 V/50–60 Hz
– TLGB 20/110V 110–120 V/60 Hz
Carrying case dimensions 590 × 110 × 370 mm (23.2 × 4.3 × 14.5 in.)
Weight 3,0 kg (6.5 lb)
Total weight (incl.case) 5,7 kg (12.7 lb)
