High viscosity grease with solid lubricants
SKF LGEM 2 is a high viscosity, mineral oil based grease using a lithium soap. Its content of molybdenum disulphide and graphite provides extra protection for harsh applications subjected to high loads, heavy vibrations and slow rotations.
High oxidation stability
Molybdenum disulphide and graphite provide lubrication even if the oil film breaks down
Typical applications:
Rolling element bearings running at low speed and very high loads
Jaw crushers
Track laying machines
Lift mast wheels
Building machines such as mechanical rams, crane arms and crane hooks

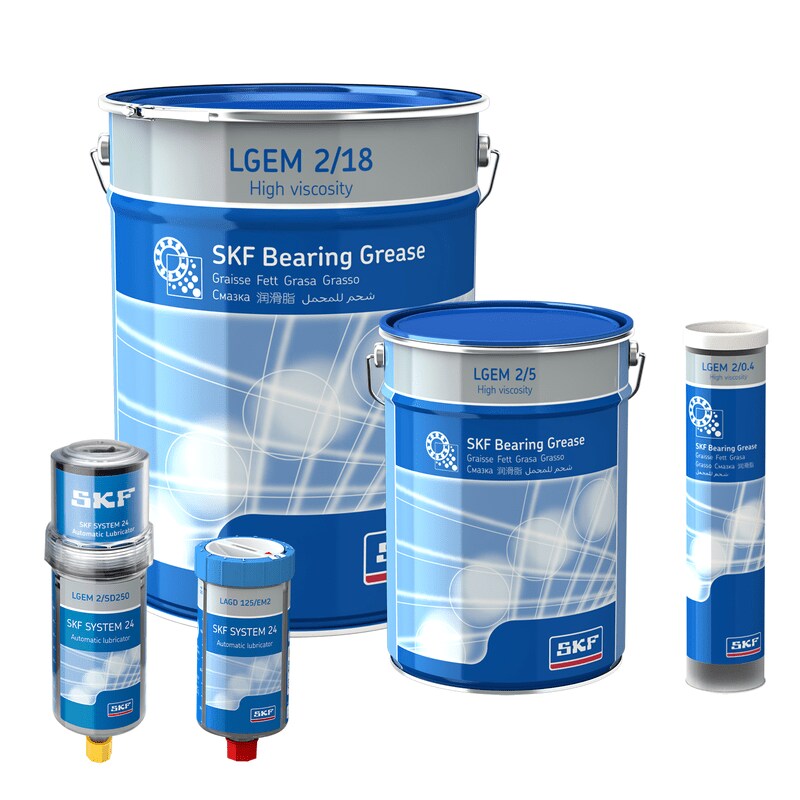

| Available pack sizes | |
| Packsize | Designation |
| 420 ml cartridge | LGEM 2/0.4 |
| 5 kg can | LGEM 2/5 |
| 18 kg pail | LGEM 2/18 |
| 180 kg drum | LGEM 2/180 |
| Gas driven lubricators | |
| LAGD series 60 ml | LAGD 60/EM2 |
| LAGD series 125 ml | LAGD 125/EM2 |
| Electro-mechanical lubricators | |
| TLSD series 125 ml | TLSD 125/EM2 |
| TLSD series 125 ml refill | LGEM 2/SD125 |
| TLSD series 250 ml | TLSD 250/EM2 |
| TLSD series 250 ml refill | LGEM 2/SD250 |
| Technical data | ||
| Designation | LGEM 2/(pack size) | |
| DIN 51825 code | KPF2K-20 | |
| NLGI consistency class | 2 | |
| Thickener | Lithium | |
| Colour | Black | |
| Base oil type | Mineral | |
| Operating temperature range | –20 to +120 °C (–5 to +250 °F) |
|
| Dropping point DIN ISO 2176 | >180 °C (>355 °F) | |
| Base oil viscosity | ||
| 40 °C, mm²/s 100 °C, mm²/s |
500 32 |
|
| Penetration DIN ISO 2137 | ||
| 60 strokes, 10–1 mm 100 000 strokes, 10–1 mm |
265–295 325 max. |
|
| Mechanical stability | ||
| Roll stability, 50 hrs at 80 °C, 10–1 mm V2F test |
345 max. ‘M’ |
|
| Corrosion protection | ||
| Emcor: |
– standard ISO 11007 – water washout test |
0–0 0–0 |
| Water resistance | ||
| DIN 51 807/1, 3 hrs at 90 °C | 1 max. | |
| Oil separation | ||
| DIN 51 817, 7 days at 40 °C, static, % | 1–5 | |
| Lubrication ability | ||
| R2F, running test B at 120 °C | Pass at 100 °C (210 °F) | |
| Copper corrosion | ||
| DIN 51 811 |
2 max. at 100 °C (210 °F) |
|
| EP performance | ||
| Wear scar DIN 51350/5, 1 400 N, mm 4–ball test, welding load DIN 51350/4, N |
1,4 max. 3 000 min. |
|
