High performance, high temperature grease
SKF LGHP 2 is a premium quality mineral oil based grease, using a modern Polyurea (di-urea) thickener. It is suitable for electric motors and similar applications.
Extremely long life at high temperatures
Wide temperature range
Excellent corrosion protection
High thermal and mechanical stability
Good start-up performance at low temperatures
Compatibility with common polyurea and lithium thickened greases
Low noise properties
Typical applications:
Electric motors: Small, medium and large
Industrial fans, including high speed fans
Water pumps
Rolling bearings in textile, paper processing and drying machines
Applications with medium and high speed ball (and roller) bearings operating at medium and high temperatures
Clutch release bearings
Vertical shaft applications
Kiln trucks and rollers

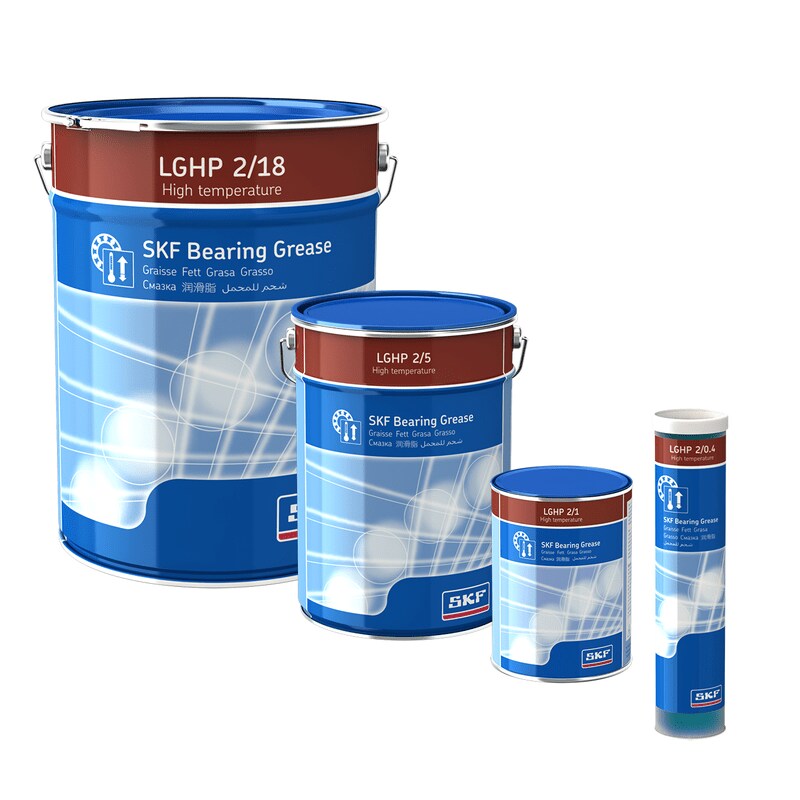

| Available pack sizes | |
| Packsize | Designation |
| 420 ml cartridge | LGHP 2/0.4 |
| 1 kg can | LGHP 2/1 |
| 5 kg can | LGHP 2/5 |
| 18 kg pail | LGHP 2/18 |
| 50 kg drum | LGHP 2/50 |
| 180 kg drum | LGHP 2/180 |
| Gas driven lubricators | |
| LAGD series 60 ml | LAGD 60/HP2 |
| LAGD series 125 ml | LAGD 125/HP2 |
| Electro-mechanical lubricators | |
| TLSD series 125 ml | TLSD 125/HP2 |
| TLSD series 125 ml refill | LGHP 2/SD125 |
| TLSD series 250 ml | TLSD 250/HP2 |
| TLSD series 250 ml refill | LGHP 2/SD250 |
| Electro-mechanical lubricant dispensers | |
| TLMR 101 series 380 ml refill (incl. battery) | LGHP 2/MR 380B |
| TLMR 201 series 380 ml refill | LGHP 2/MR380 |
| Technical data | ||
| Designation | LGHP 2/(pack size) | |
| DIN 51825 code | K2N-40 | |
| NLGI consistency class | 2–3 | |
| Thickener | Di–urea | |
| Colour | Blue | |
| Base oil type | Mineral | |
| Operating temperature range | –40 to +150 °C (–40 to +300 °F) |
|
| Dropping point DIN ISO 2176 | >240 °C (>465 °F) | |
| Base oil viscosity | ||
| 40 °C, mm²/s 100 °C, mm²/s |
96 10,5 |
|
| Penetration DIN ISO 2137 | ||
| 60 strokes, 10–1 mm 100 000 strokes, 10–1 mm |
245–275 365 max. |
|
| Mechanical stability | ||
| Roll stability, 50 hrs at 80 °C, 10–1 mm | 365 max. | |
| Corrosion protection | ||
| Emcor: |
– standard ISO 11007 – water washout test – salt water test (100% seawater) |
0–0 0–0 0–0 |
| Water resistance | ||
| DIN 51 807/1, 3 hrs at 90 °C | 1 max. | |
| Oil separation | ||
| DIN 51 817, 7 days at 40 °C, static, % | 1–5 | |
| Lubrication ability | ||
| R2F, running test B at 120 °C | Pass | |
| Copper corrosion | ||
| DIN 51 811 |
1 max. at 150 °C (300 °F) | |
| Rolling bearing grease life | ||
| R0F test L50 life at 10 000 r/min., hrs | 1 000 min. at 150 °C (300 °F) | |
| Fretting corrosion | ||
| ASTM D4170 (mg) | 7* | |
| * Typical value | ||
