High load, high temperature, high viscosity grease

High load, high temperature, high viscosity grease

SKF High Load, High Temperature, High Viscosity Bearing Grease LGHB 2

SKF LGHB 2 is a high viscosity, mineral oil based grease, using the latest complex calcium-sulphonate soap technology. Formulated to withstand high temperatures and extreme loads, it is suitable for a wide range of applications, especially in the cement, mining and metals segments. This grease contains no additives and the extreme pressure properties arise from the soap structure.

Excellent load capacity, anti-oxidation and corrosion protection even with large water ingress

Withstands peak temperatures of 200 °C (390 °F)

Typical applications:

Steel on steel plain bearings

Pulp and paper making machines

Asphalt vibrating screens

Continuous casting machines

Sealed spherical roller bearings operating up to 150 °C (300 °F)

Work roll bearings in steel industry

Mast rollers of fork lift trucks

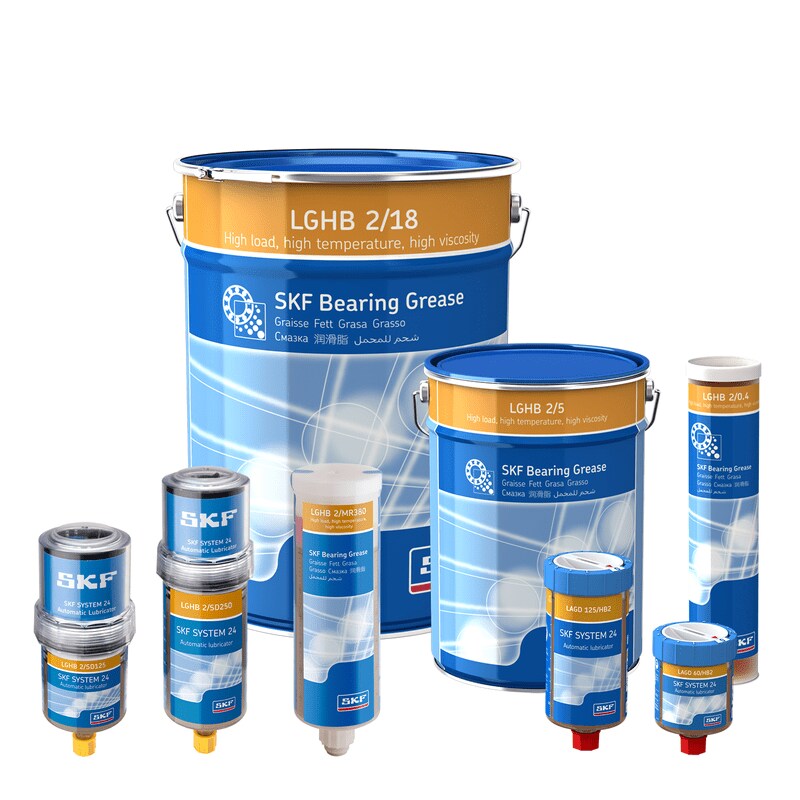

Available pack sizes
Packsize Designation
420 ml cartridge LGHB 2/0.4
5 kg can LGHB 2/5
18 kg pail LGHB 2/18
50 kg drum LGHB 2/50
180 kg drum LGHB 2/180
Gas driven lubricators
LAGD series 60 ml LAGD 60/HB2
LAGD series 125 ml LAGD 125/HB2
Electro-mechanical lubricators
TLSD series 125 ml TLSD 125/HB2
TLSD series 125 ml refill LGHB 2/SD125
TLSD series 250 ml TLSD 250/HB2
TLSD series 250 ml refill LGHB 2/SD250
Electro-mechanical lubricant dispensers
TLMR 101 series 380 ml refill (incl. battery) LGHB 2/MR 380B
TLMR 201 series 380 ml refill LGHB 2/MR380
Technical data
Designation LGHB 2/(pack size)
DIN 51825 code KP2N-20
NLGI consistency class 2
Thickener Calcium sulphonate complex
Colour Brown
Base oil type Mineral
Operating temperature range –20 to +150 °C

(–5 to +300 °F)
Dropping point DIN ISO 2176 >220 °C (>430 °F)
Base oil viscosity
40 °C, mm²/s

100 °C, mm²/s
400–450

26,5
Penetration DIN ISO 2137
60 strokes, 10–1 mm

100 000 strokes, 10–1 mm
265–295

–20 to +50 (325 max.)
Mechanical stability
Roll stability, 72 hrs at 100 °C, 10–1 mm

V2F test
–20 to +50 change

‘M’
Corrosion protection
Emcor:
– standard ISO 11007

– water washout test

– salt water test  (100% seawater)
0–0

0–0

0–0*
Water resistance
DIN 51 807/1, 3 hrs at 90 °C 1 max.
Oil separation
DIN 51 817, 7 days at 40 °C, static, % 1–3 at 60 °C (140 °F)
Lubrication ability
R2F, running test B at 120 °C Pass at 140 °C (285 °F)
Copper corrosion
DIN 51 811
2 max. 150 °C (300 °F)
Rolling bearing grease life
R0F test L50 life at 10 000 r/min., hrs >1 000 at 130 °C (265 °F)
EP performance
Wear scar DIN 51350/5, 1 400 N, mm

4–ball test, welding load DIN 51350/4, N
0,86*

4 000 min.
Fretting corrosion
ASTM D4170 (mg) 0*
* Typical value
