High load, extreme pressure grease
SKF LGEP 2 is mineral oil based, lithium soap thickened grease with extreme pressure additives. This grease provides good lubrication in general applications subjected to harsh conditions and vibrations.
Excellent mechanical stability
Extremely good corrosion inhibiting properties
Excellent EP performance
Typical applications:
Pulp and paper making machines
Jaw crushers
Traction motors for rail vehicles
Dam gates
Work roll bearings in steel industry
Heavy machinery, vibrating screens
Crane wheels, sheaves
Slewing bearings

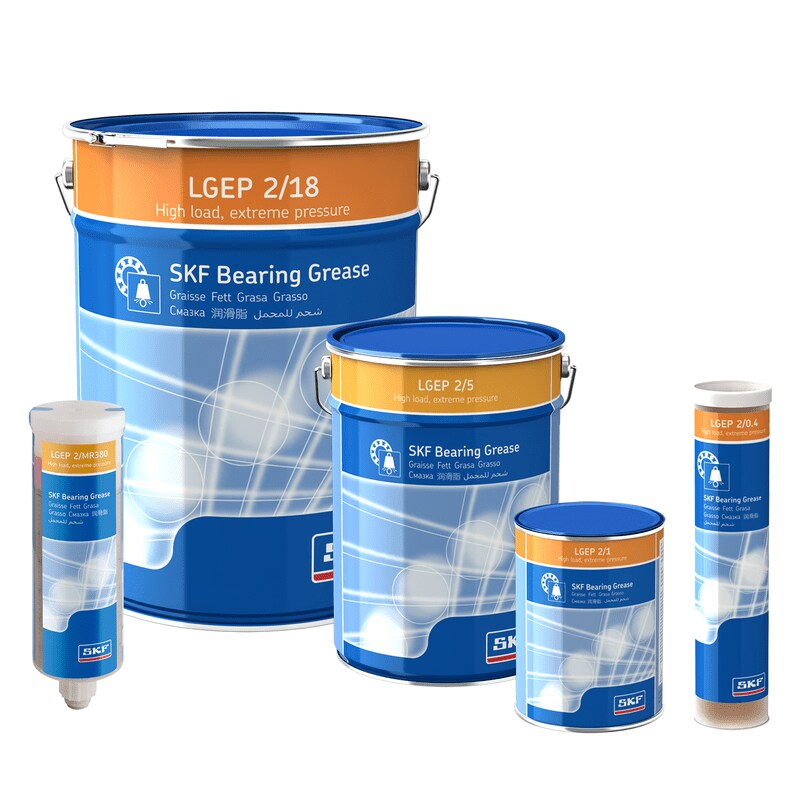

| Available pack sizes | |
| Packsize | Designation |
| 420 ml cartridge | LGEP 2/0.4 |
| 1 kg can | LGEP 2/1 |
| 5 kg can | LGEP 2/5 |
| 18 kg pail | LGEP 2/18 |
| 50 kg drum | LGEP 2/50 |
| 180 kg drum | LGEP 2/180 |
| Electro-mechanical lubricant dispensers | |
| TLMR 101 series 380 ml refill (incl. battery) | LGEP 2/MR 380B |
| TLMR 201 series 380 ml refill | LGEP 2/MR380 |
| Technical data | ||
| Designation | LGEP 2/(pack size) | |
| DIN 51825 code | KP2G-20 | |
| NLGI consistency class | 2 | |
| Thickener | Lithium | |
| Colour | Light brown | |
| Base oil type | Mineral | |
| Operating temperature range | –20 to +110 °C (–5 to +230 °F) |
|
| Dropping point DIN ISO 2176 | >180 °C (>355 °F) | |
| Base oil viscosity: | ||
| 40 °C, mm²/s 100 °C, mm²/s |
200 16 |
|
| Penetration DIN ISO 2137: | ||
| 60 strokes, 10–1 mm 100 000 strokes, 10–1 mm |
265–295 +50 max. (325 max.) |
|
| Mechanical stability: | ||
| Roll stability, 50 hrs at 80 °C, 10–1 mm V2F test |
+50 max. ‘M’ |
|
| Corrosion protection: | ||
| Emcor: |
– standard ISO 11007 – water washout test – salt water test (100% seawater) |
0–0 0–0 1–1* |
| Water resistance | ||
| DIN 51 807/1, 3 hrs at 90 °C | 1 max. | |
| Oil separation | ||
| DIN 51 817, 7 days at 40 °C, static, % | 2–5 | |
| Lubrication ability | ||
| R2F, running test B at 120 °C | Pass | |
| Copper corrosion | ||
| DIN 51 811 |
2 max. at 110 °C (230 °F) | |
| EP performance | ||
| Wear scar DIN 51350/5, 1 400 N, mm 4–ball test, welding load DIN 51350/4, N |
1,4 max 2 800 min. |
|
| Fretting corrosion | ||
| ASTM D4170 (mg) | 5,7* | |
| * Typical value | ||
