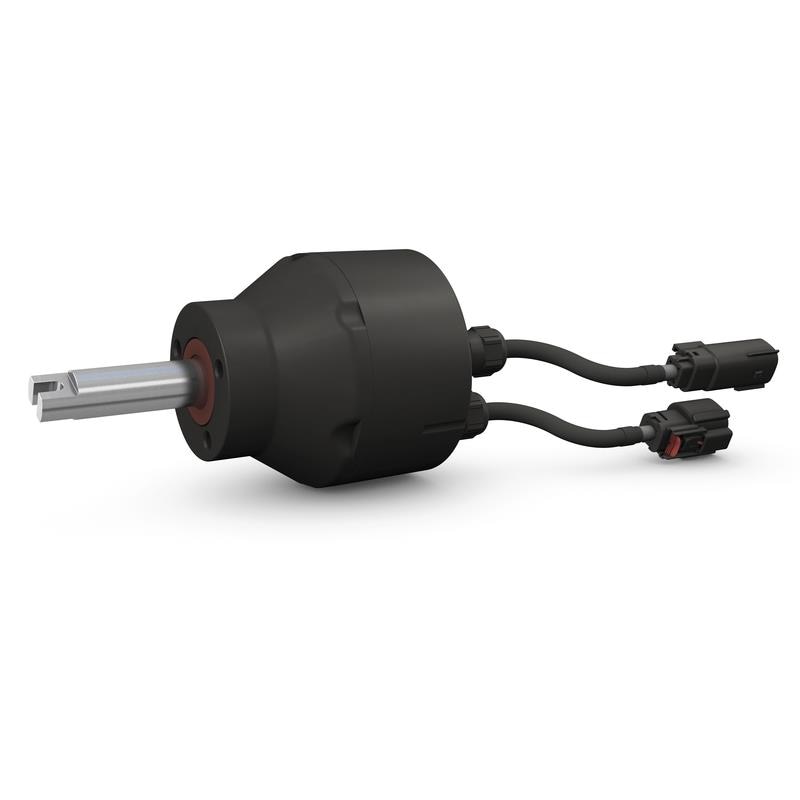

SKF Electronic Steering Input Unit

SKF Electronic Steering Input Unit

Electronic steering input unit

The SKF Electronic Steering Input Unit is a mechatronic solution with integrated Electronic Control Unit (ECU), embedded software and CAN bus interface, which can replace the traditional steering column offering a robust steering input function to be fitted in both electro-hydraulic and electro-mechanic steer-by-wire systems.

The solution translates the steering wheel’s rotational movement into safe digital information on the CAN bus, offering a resistive steering feedback with redundant control. Engineered to withstand severe operating conditions and tested to fulfill the severe steering input requirements for marine and off-highway segments, these units have passed an extensive set of mechanical, environmental and electrical tests.


Redundant position signal for steering wheel

Controllable resistive steering feedback with redundant command

Compact design

Contactless sensors

Customer Benefits

Enables more ergonomic vehicle interior design

Enables more accurate, comfortable and safe steering for better vehicle manoeuvrability

Integrated and virtually maintenance free technology reduces cost of ownership

ESIU technical data

Resistive feedback torque: 0,3 – 12 Nm

Max static axial force: 1500 N

Max steering speed: 180 r/min

Supply Voltage: 10V – 36 V DC

Ambient operating temperature: –40° to +85°

Protection Level: IP 67

Typical applications:

Leisure boats
Forklift trucks
Off-highway vehicles
