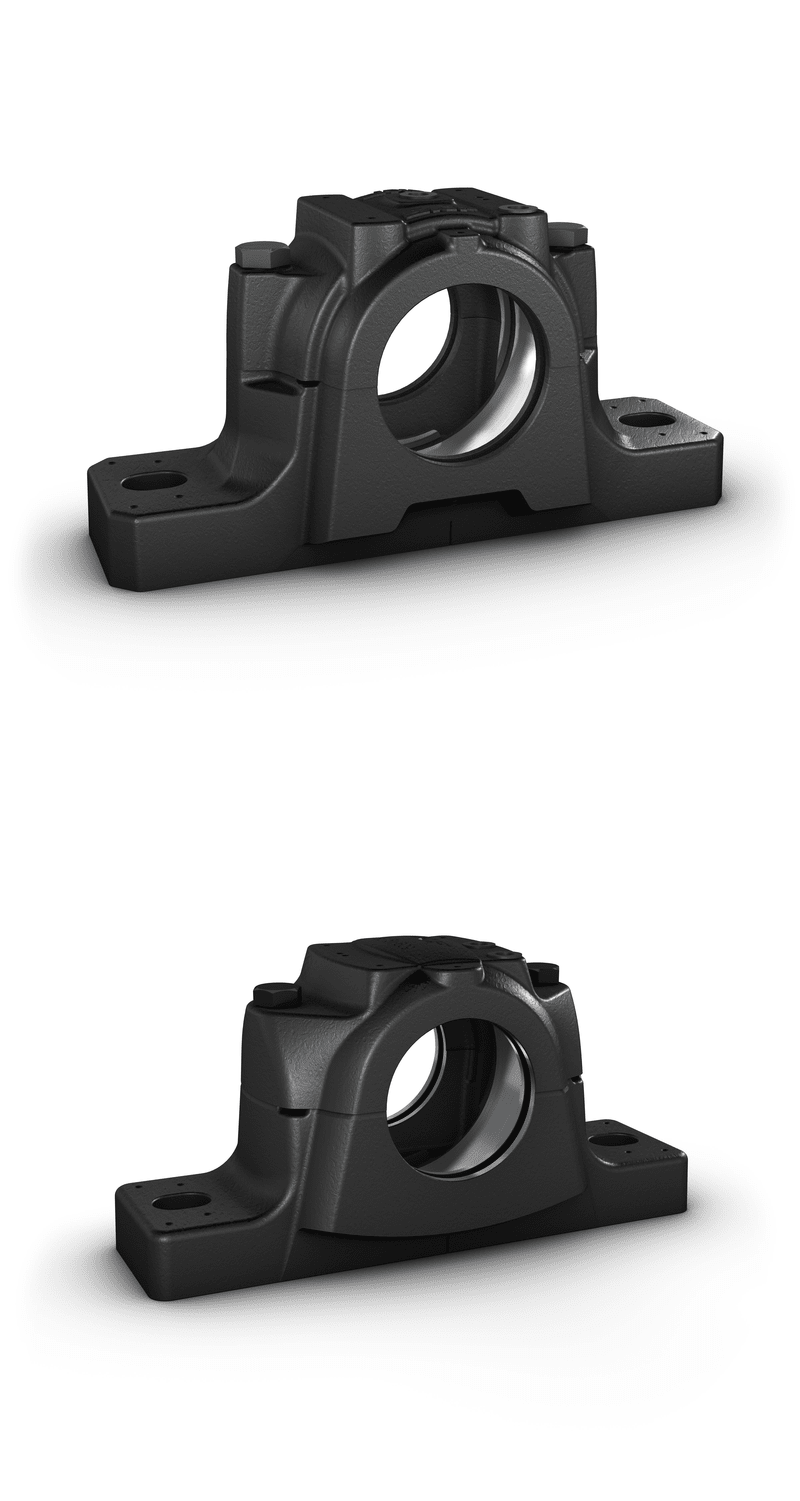

Split plummer block housings, SNL and SE 2, 3, 5 and 6 series

SE plummer block housings are a new generation with a number of new features and a stronger material grade. They are available from size 507 up to and including 515-612.

SNL and SE plummer block housings enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling costeffective bearing arrangements to be made.

Bearing types

Self-aligning ball bearings

Spherical roller bearings

CARB toroidal roller bearings

Bearing dimension series

02, 03, 22, 23, 32

Shaft diameter range

20 to 160 mm

3/4 to 5 1/2 in.

Typical shaft-bearing combinations

Plain shaft with bearing on an adapter sleeve

Stepped shaft with bearing on a cylindrical seat

Seals

Four-lip

V-ring

Labyrinth

Heavy-duty

Felt

Lubrication

Grease

Oil

Materials

Grey cast iron

Spheroidal graphite cast iron

Mounting

Two-bolt mounting

Four-bolt mounting

Compliance to standards

ISO 113:2010

(two-bolt plummer block housings)

Supersedes

SN, SNA, SNH series
