Split pillow blocks, SDAF series including the extended range (inch dimensions)

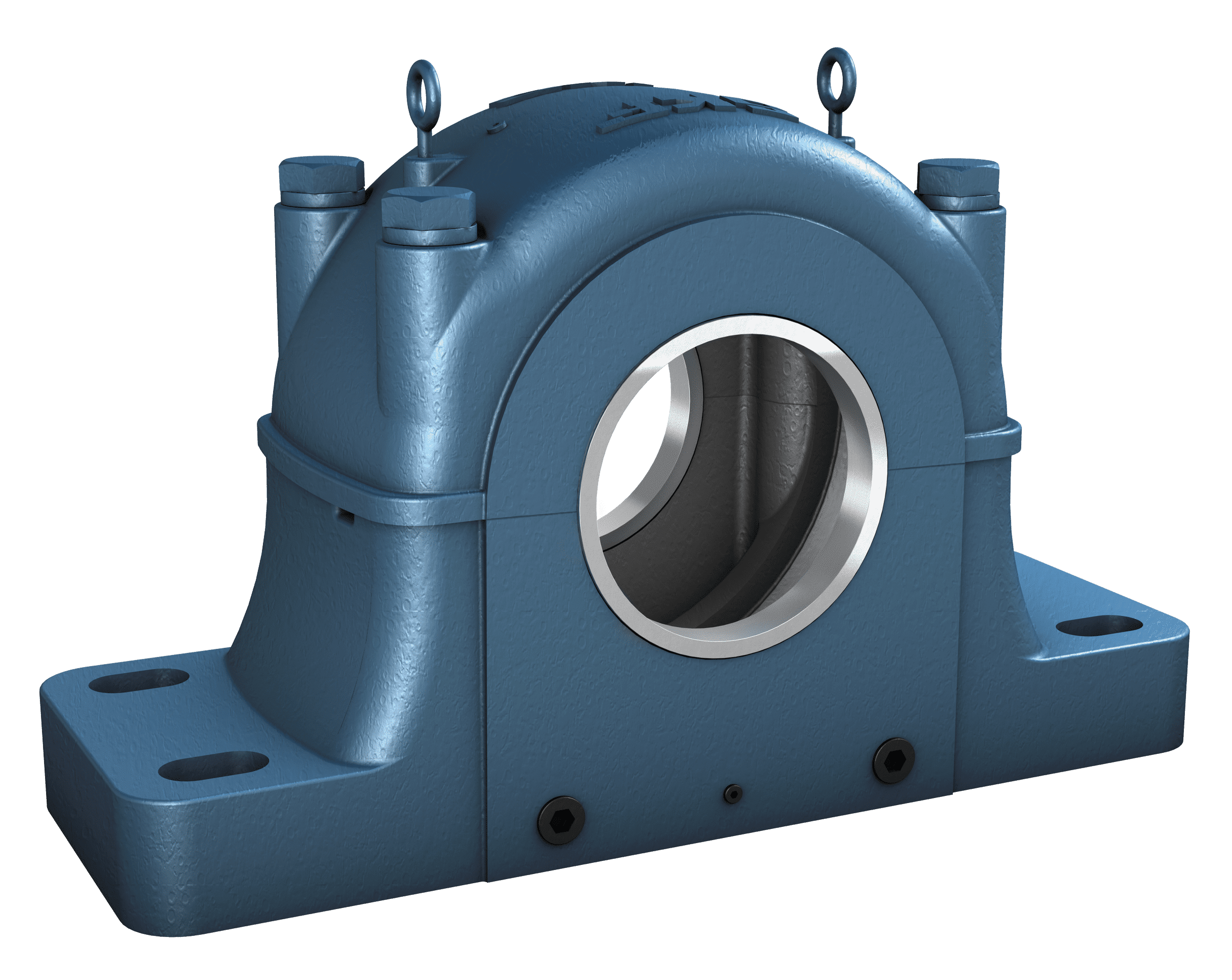

All SDAF housings, which include the SDAF extended range, are heavy-duty split pillow (plummer) block housings designed for tough operating conditions where heavy loads and shock loads require a housing that is exceptionally sturdy. All SDAF housings are made to order.
SDAF housings can accommodate bearings in the 22 and 23 dimension series for shaft diameters ranging from 2 15/16 to 9 9/16 inches. SDAF extended range housings can accommodate bearings in the 30, 31 and 32 dimension series for shaft diameters ranging from 8 15/16 to 20 inches and larger. Housings in the extended range are typically customized to meet the needs of a particular application.
Bearing types
Spherical roller bearings
CARB toroidal roller bearings
Bearing dimension series
22, 23 (SDAF)
30, 31, 32 (SDAF extended range)
Shaft diameter range
2 15/16 to 9 9/16 in. (SDAF)
9 in. and larger (SDAF extended range)
Typical shaft-bearing combinations
Plain shaft with bearing on an adapter sleeve
Stepped shaft with bearing on a cylindrical seat
Seals
Labyrinth
Contact
Heavy-duty
Lubrication
Grease
Oil
Materials
Grey cast iron
Ductile iron (Spheroidal graphite cast iron)
Cast steel
Mounting
Four-bolt mounting
Compliance to standards
Not standardized
