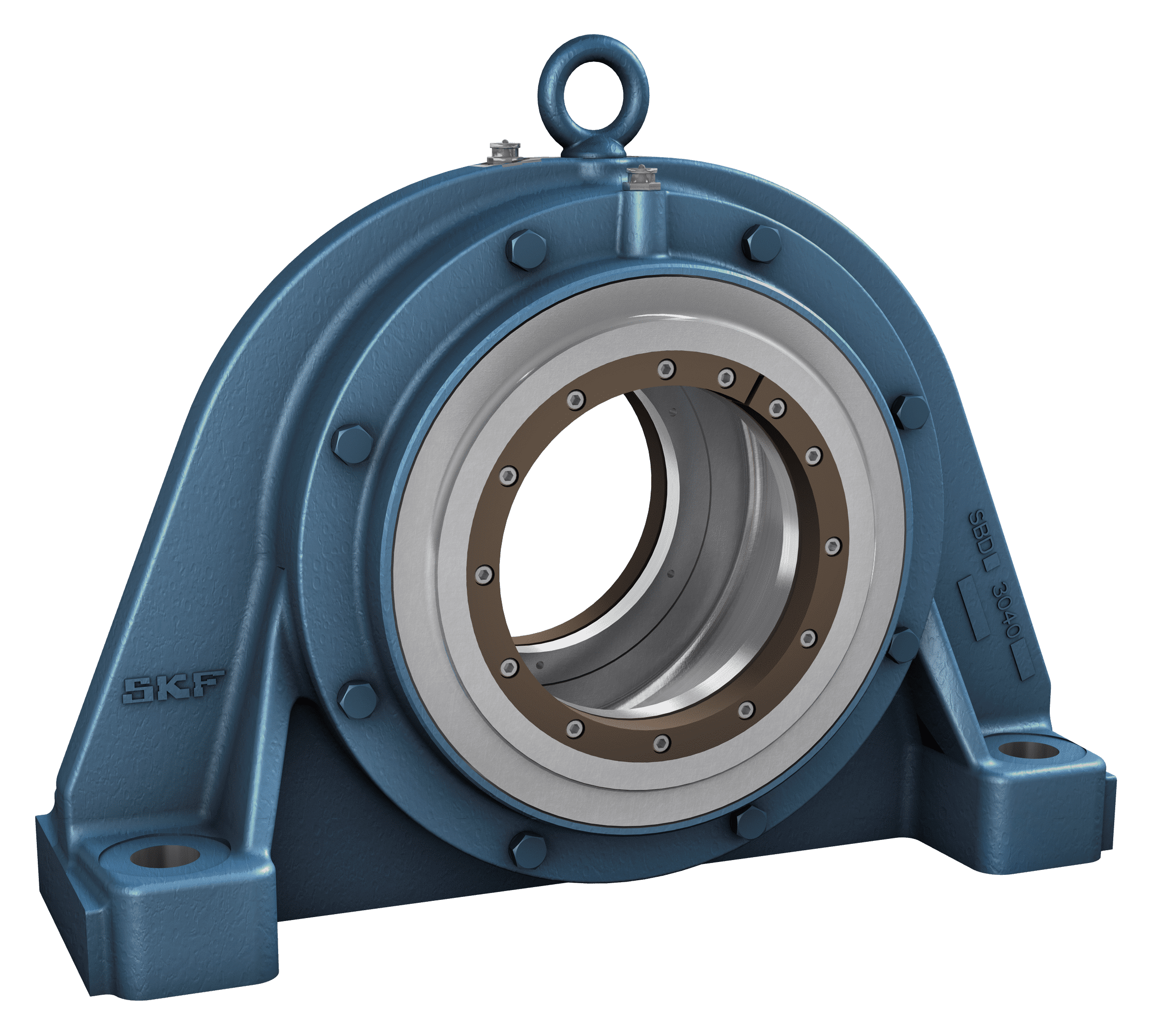

Non-split plummer block housings and take-up housings, SBD and THD series

SBD plummer (pillow) block housings and THD take-up housings are non-split housings designed to accommodate heavy loads acting in different directions. These types of loads are typically encountered in conveyors, roller beds and crushers. Highly reliable bearing arrangements can be designed using SBD or THD housings together with SKF Explorer bearings. In conveyors, SBD and THD housings are often used together.

Bearing types

Spherical roller bearings

CARB toroidal roller bearings (optional)

Bearing dimension series

22, 30, 31, 32

Shaft diameter range

60 to 420 mm (SBD)

50 to 400 mm (THD)

Typical shaft-bearing combinations

Plain shaft with bearing on an adapter sleeve (SBD and THD)

Stepped shaft with bearing on an adapter sleeve (SBD)

Stepped shaft with bearing on a cylindrical seat (SBD)

Multi-stepped shaft with bearing on a cylindrical seat (SBD)

Seals

Labyrinth

Heavy-duty (optional)

Lubrication

Grease

Materials

Spheroidal graphite cast iron

Cast steel (optional)

Grey cast iron (optional)

Mounting

Four-bolt mounting (SBD)

Compliance to standards

Not standardized
