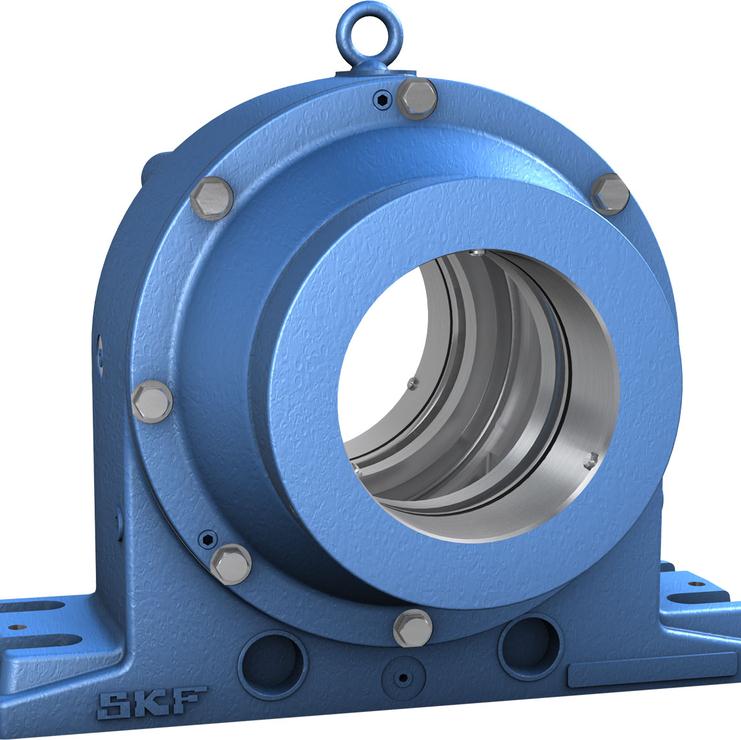

Housings for paper machines, SBFN, SBPN and SDM series

With increasing demands placed on the output of paper machines, the operating conditions for housings, bearings and seals in this application are quite severe. Very high temperatures are typical and the risk of water contamination is always high. SKF provides housings for felt rolls, drying cylinders, and Yankee cylinders (used for producing tissue and board).

Bearing types

Spherical roller bearings

CARB toroidal roller bearings

Bearing dimension series

22, 23, 31 (SBFN series)

31 (SBPN series)

30, 31 (SDM series)

Shaft diameter range

60 to 180 mm (SBFN series)

180 to 320 mm (SBPN series)

340 to 670 mm (SDM series)

Typical shaft-bearing combinations

Stepped shaft with a bearing on a tapered seat

Seals

Labyrinth (SBFN and SBPN series)

Gap-type seal with oil flinger (SDM series)

Lubrication

Circulating oil lubrication systems

Material

Grey cast iron

Mounting

Two-bolt mounting (SBFN series)

Four-bolt mounting (SBPN and SDM series)

Compliance to standards

Not standardized

Supersedes

SBF, SBP series
