Thrust ball bearings

Thrust ball bearings

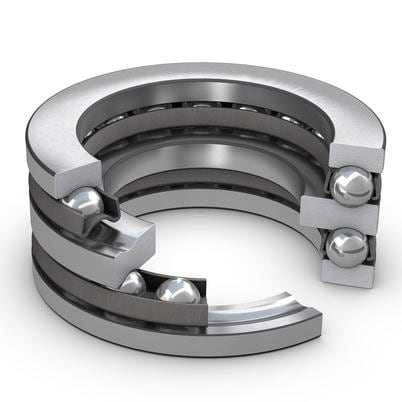

Double direction thrust ball bearing

SKF thrust ball bearings are manufactured as single direction (fig. 1) or double direction (fig. 2) thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.

Bearing features

Separable and interchangeable

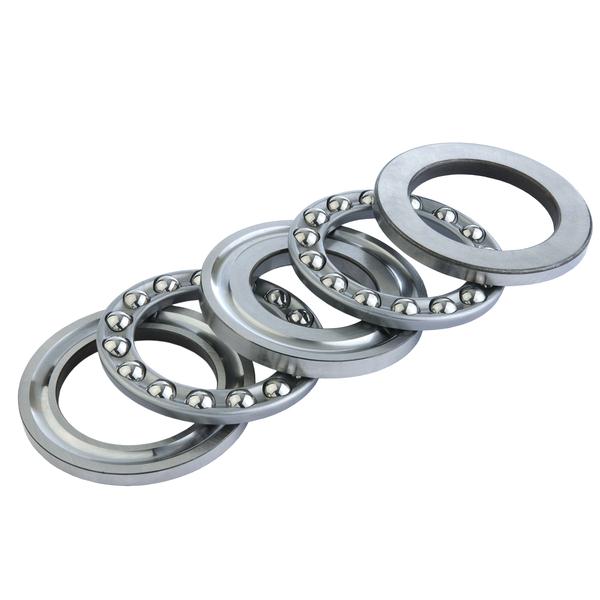

The separable components of SKF thrust ball bearings are interchangeable (fig. 3, fig. 4). This facilitates mounting and dismounting, and maintenance inspections.

Initial misalignment

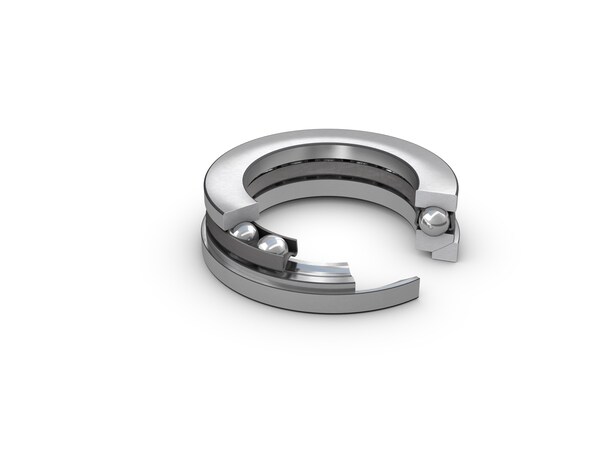

Bearings with sphered housing washer(s) (fig. 5) can accommodate initial misalignment.

Interference fit

Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.

fig. 3

fig. 4

fig. 5
In addition to the bearings presented in this section, SKF supplies thrust ball bearings for special application requirements. This assortment includes:

Bearings with Solid Oil

NoWear coated bearings
