Insert bearings (Y-bearings)

Insert bearings (Y-bearings)

Y-bearing with a tapered bore on an adapter sleeve

Insert bearings (SKF Y-bearings) are based on sealed deep groove ball bearings in the 62 and 63 series, but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.

Industry offers to meet your specific challenges


Agriculture

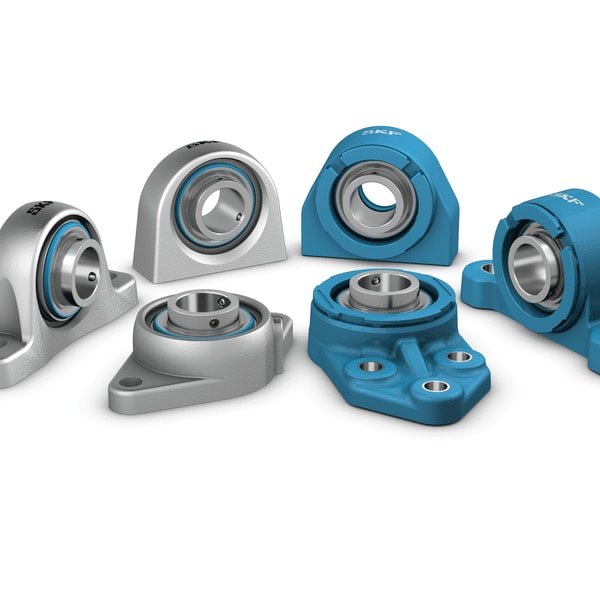

SKF Food Line ball bearing units
Food and beverage


Air handling


Material handling

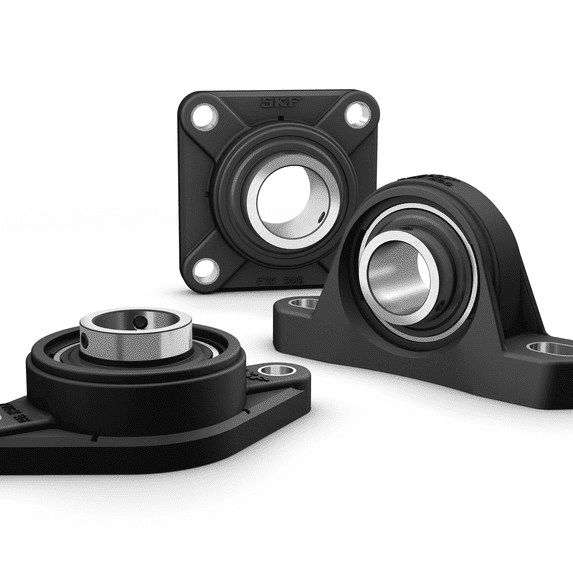

SKF ball bearing units with composite housings

Find the suitable locking method

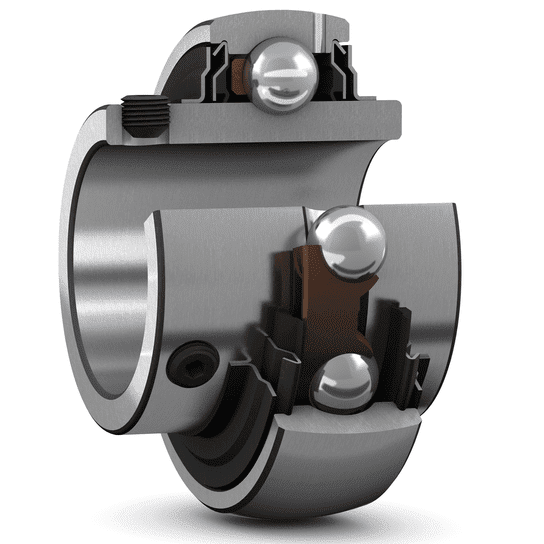

Insert bearing with grub screws
Locking with grub screws

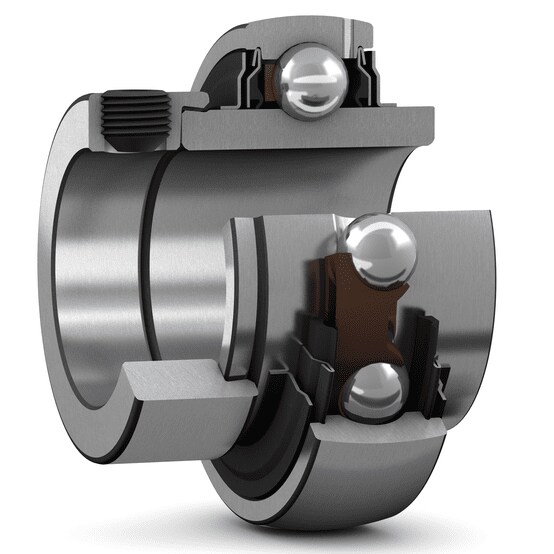

Insert bearing with an eccentric locking collar
Locking with an eccentric locking collar

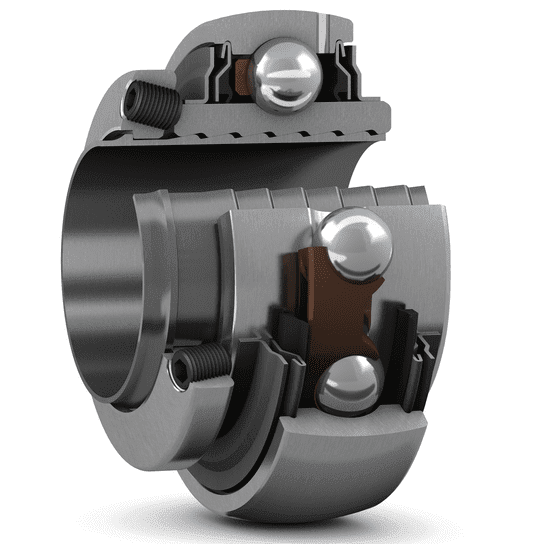

SKF ConCentra insert bearing
SKF ConCentra locking

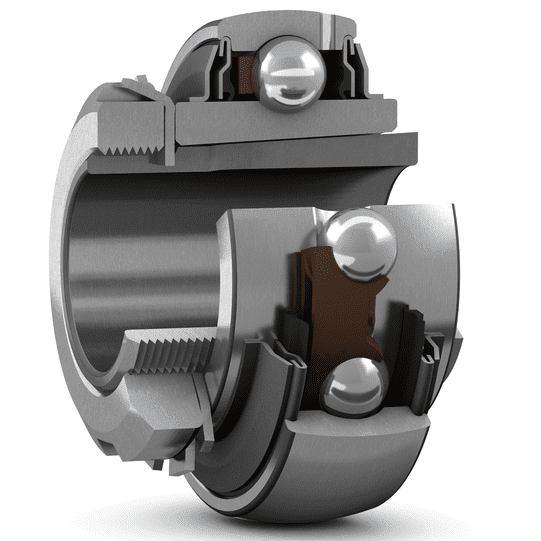

Insert bearing with a tapered bore on an adapter sleeve
Locking with an adapter sleeve

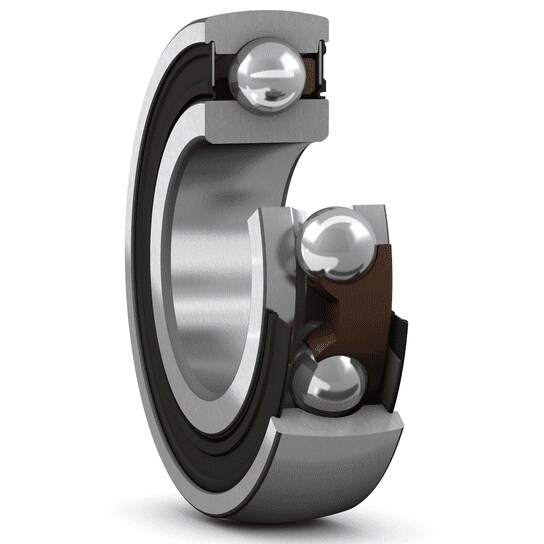

Insert bearing with a standard inner ring
Locking with an interference fit

Bearing features

Quick and easy to mount

The different locking methods enable quick and easy mounting of insert bearings onto the shaft.

Accommodate initial misalignment

The spherically shaped outside surface enables initial misalignment by tilting in the housing (fig. 1).

Long service life

The different sealing solutions available provide a long service life for a wide variety of applications with high contamination levels.

Reduced noise and vibration levels

Where high requirements on noise and vibration levels are important, SKF can provide the appropriate shaft locking method.

Where to use insert bearings?

Because of their versatility and cost-effectiveness, insert bearings are typically used in the following applications:

Agricultural machinery

Food and beverage processing and packaging

Conveyor systems

Material handling systems

Textile equipment

Industrial fans

Special machinery, e.g. car wash systems, gym equipment, go-karts

Need more?

In addition to the bearings presented in this section, SKF supplies insert bearings for special application requirements. This assortment includes:

Bearings and bearing units for high temperature applications

Bearings with Solid Oil

Bearings with a customized design or dimensions (→ contact SKF)
